SH30-32-3-GS04-2
YUEQING JOY IMP&EXP CO.,LTD is one of the majoy manufacturer for SH30-32-3-GS04-2,welcome to inquire price and ask for samples。
  • Product introduction
  • Technical parameter

SH30 series universal switch is mainly used for AC 50Hz, rated voltage below 440V, rated current to In 100A electrical circuit, it is used as the main switch of ventilation equipment, air conditioning and water pump system, and can also directly control small AC capacity.Motivation.

The products meet the standards CB14048.3 and IEC60947-3.

SH30 series switches are complete in specifications, with 20A, 25A, 32A, 40A, 63A, 80A and 100A current levels.

SH30 series switches have small size, compact structure, fastidious material selection, good insulation, finger protection function, safety.

Depending on it, you can add other contact blocks on the 3 pole standard block without removing the switch.

The SH30 series switch has larger insulation distance than other similar switches, and it has fast disconnection speed and is suitable for DC switches.


Normal working conditions

(1) Ambient Air Temperature Does Not Exceed +40 Degrees, And The Average Temperature Inside 24h is Not More Than +35 C;

(2) The Lower Limit Of Ambient Air Humidity Is Not More Than -25 C;

(3) The Altitude Of The Installation Site Shall Not Exceed 2000m;

(4) When The Highest Humidity Is + 40, The Relative Humidity Of The Air Does Not Exceed 50%. Higher Relative Humidity Can Be Allowed At Lower Temperatures, Such As 90% At 20. Special Measures Should Be Taken For The Occasional Condensation Caused By Temperature Changes.


Installation conditions

(1) The switch is installed in the environmental condition of pollution level 3.
(2) Install according to the instructions provided by our factory.

Classification

1. By usage category
(1) AC-23A
(2) AC-3
2. According to the level of protection provided
(1) no switch box IP2L0
(2) IP65 with thermoplastic sealed switch box

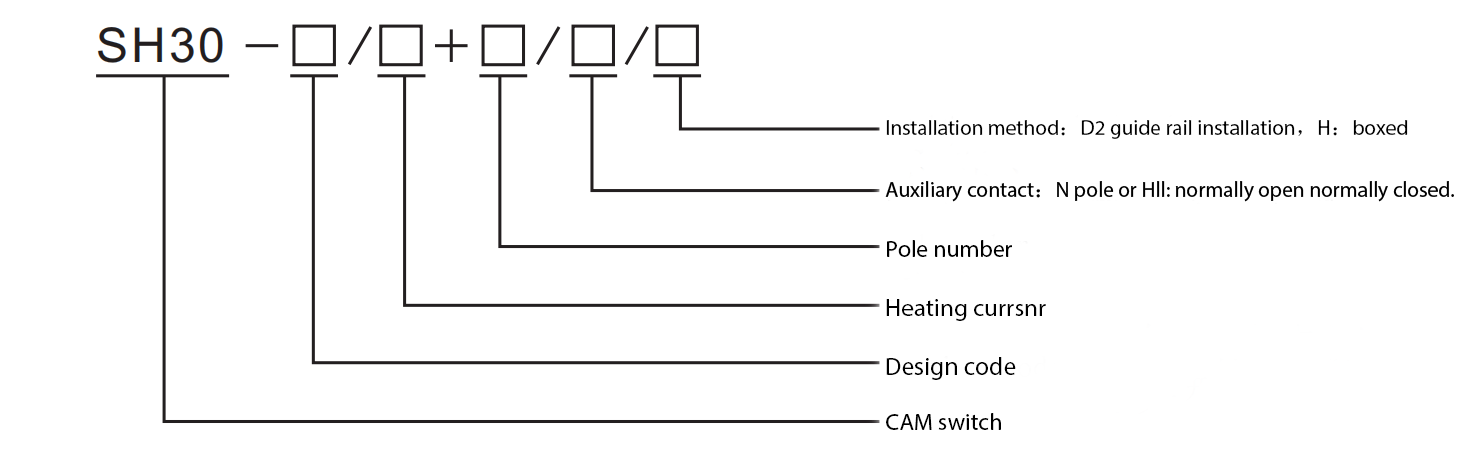

Product type and its meaning

Specification model

SH30-25

SH30-32

SH30-40

SH30-63

SH30-80

SH30-100

Prescribed heating current Ith

A

25

32

40

63

80

100

Rated working voltage Ue

V

240 440

240 440

240 440

240 440

240 440

240 440

Rated value le/kw

AC-21 A

A/KW

25/- 25/-

32/- 32/-

40/- 40/-

63/- 63/-

80/- 80/-

100/- 100/-

AC-22A

A/KW

25/- 25/-

32/- 32/-

40/- 40/-

63/- 63/-

80/- 80/-

100/- 100/-

AC-23A

A/KW

15/4 15/5.5

22/5.5 22/7.5

30/11 30/15

43/15 43/18.5

57/18.5 57/30

70/22 70/37

AC-3

A/KW

12/3 12/3.7

15/4 15/5.5

22/7.5 22/11

36/11 36/15

43/15 43/22

57/18.5 57/30

Current type: AC 50Hz

Number of main contacts: ON or OFF two position

Rated working system: 8 hours working / intermittent cycle operation, and the operation frequency is 30 times /h.

Electrical life: AC-23 for 10000 times, AC-3 for 6000 times, auxiliary contacts for 2000 times.

SH30 series panel installation

Model specification

Shape size

Installation size

A

B

C

L

E

F

D1

D2

SH30-25or32

64

13.5

42.5

55

48

48

$10

4.5

SH30-40or63

64

16

50

62

48

48

(D 10

4.5

SH30-80 or 100

64

22

70

71

48

48

(D 10

4.5

SH30 series door interlocking guide rail is installed D2 (50/100/150/200).

Model specification

Outline size (mm)

Installation dimension (mm)

K

LI

L

E

F

D1

D2

SH30-20

50

32

150

48

48

022

04.2

SH30-25

50

32

150

48

48

022

04.2

SH30-32

50

32

150

48

48

022

04.2

SH30-40

61

32

150

48

48

022

04.2

SH30-63

61

32

150

48

48

022

04.2

SH30-80

68

32

150

48

48

022

04.2

SH30-100

68

32

150

48

48

022

04.2

Note: the base can be installed on the 35mm standard guide rail
