SH-B2-10XB21
YUEQING JOY IMP&EXP CO.,LTD is one of the majoy manufacturer for SH-B2-10XB21,Welcome to inquire price and ask for samples.
  • Product Overview
  • Specifications

Mounting hole size:Φ22

Switch rating:Ui 440V,Ith 10A

Mechanical life:2 million times

Electrical life:500,000 times

Contact structure:10/01/20/02/30/40/21/12/22/33

Illuminated voltageAC/DC3V6V12V24V36V48V110V220V  AC110V220V380V

Operation type: No-self-recovery type;  ZS-self-locking type;

Color: red, green, yellow, blue, white

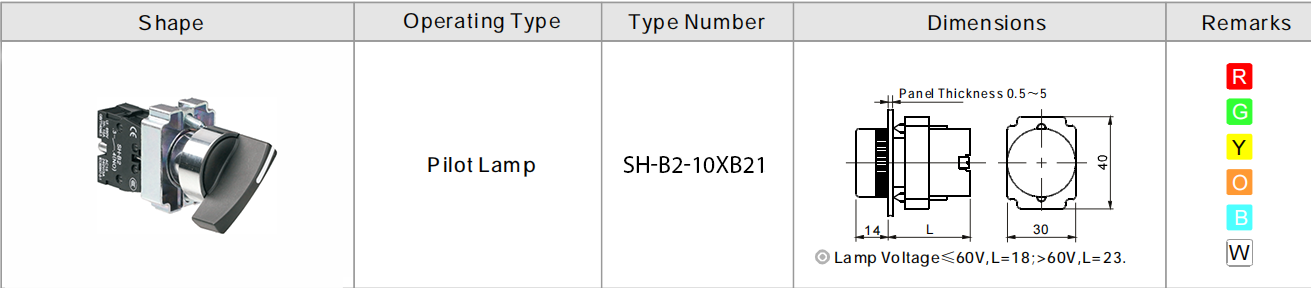

Cutline of Normal Type

OperatingTemperature

- 25℃~+55℃(no freezing)

Operating Hum idity

45 ~ 85%RH(no condensation)

Operating Altitude

Installation site can' t be over 2000m above see level.

Contact Material

-silver
-silver alloy
-gold-clad silver, cladding thickness is 3 μm

Contact Resistance

≤50m

Insulation Resistance

≥100M

Dielectric Strength

3000V,Alternating Current50Hz

Vibration Resistance

50Hz,Amplitude 1.0mm p-p

Shock Resistance

≥10g


Life

Mechanical


Momentary :≥1,000,000 times;
alternate,selector :≥500,000
times;key-lock,e mergency :≥200,000 times

Electrical

5万times≥

Terminal


Screwterminal, connecting ability:
Min : 1×0.5mm2 ,
Max: :2×1.5mm o2 r 1 ×2 .5mm2
(with or witho utconnecting link)

Operation


Operation strength:800gf~2200gf,according to the
quantity ofswitch units
Operation travel :About 5.5mm(For push button type)

Pollution Degree

3 degrees
