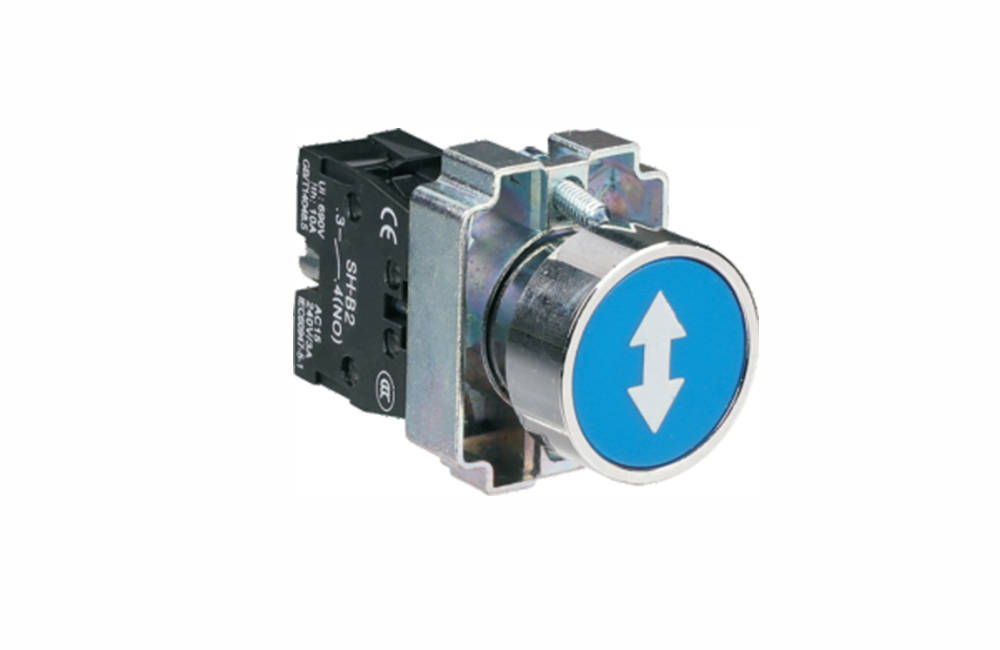

Mounting hole size:Φ22
Switch rating:Ui 440V,Ith 10A
Mechanical life:≥2 million times
Electrical life:≥500,000 times
Contact structure:：10/01/20/02/30/40/21/12/22/33
Illuminated voltage：AC/DC：3V、6V、12V、24V、36V、48V、110V、220V AC：110V、220V、380V
Operation type: No-self-recovery type; ZS-self-locking type;
Color: red, green, yellow, blue, white

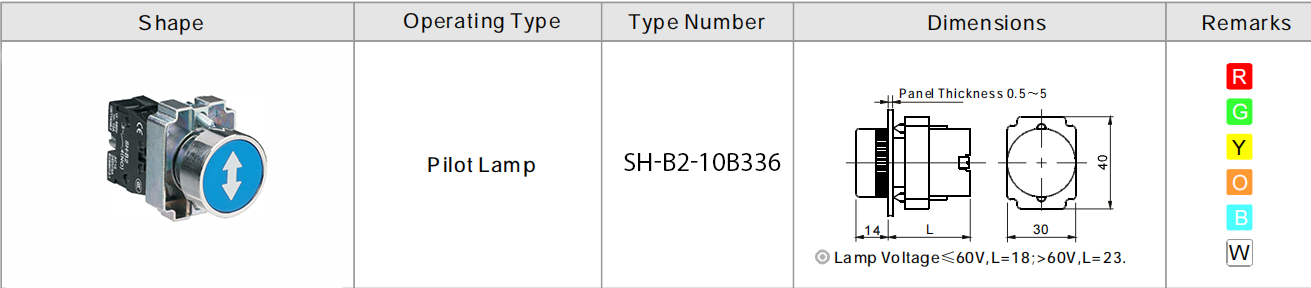

Cutline of Normal Type
|
OperatingTemperature |
- 25℃~+55℃(no freezing) |
|
|
Operating Hum idity |
45 ~ 85%RH(no condensation) |
|
|
Operating Altitude |
Installation site can＇ t be over 2000m above see level. |
|
|
Contact Material |
-silver
-silver alloy
-gold-clad silver, cladding thickness is 3 μm
|
|
|
Contact Resistance |
≤50m |
|
|
Insulation Resistance |
≥100M |
|
|
Dielectric Strength |
3000V,Alternating Current50Hz |
|
|
Vibration Resistance |
50Hz,Amplitude 1.0mm p-p |
|
|
Shock Resistance |
≥10g |
|
|
Life |
Mechanical |
Momentary :≥1,000,000 times;
alternate,selector :≥500,000
times;key-lock,e mergency :≥200,000 times
|
|
Electrical |
5万times≥ |
|
|
Terminal |
Screwterminal, connecting ability:
Min : 1×0.5mm2 ,
Max: :2×1.5mm o2 r 1 ×2 .5mm2
(with or witho utconnecting link)
|
|
|
Operation |
Operation strength:800gf~2200gf,according to the
quantity ofswitch units
Operation travel :About 5.5mm(For push button type)
|
|
|
Pollution Degree |
3 degrees |
|
|
Rated InsulationVoltage |
Ui: 660V |
|||||
|
ThermalCurrent |
Ith: 10A |
|||||
|
RatedVoltage |
24V |
48V |
110V |
220V |
380V |
500V |
|
DirectCurrent |
10A |
5A |
2.2A |
1.1A |
|
|
|
Alternating CurrentP.F=0.7 |
|
|
10A |
6A |
4A |
2A |
Lamp Ratings
|
Lamp Type |
AC LED Lamp |
|||
|
Rated |
AC/DC 6V |
AC/DC 12V |
AC/DC 24V |
|
|
AC 110V |
AC 220V |
AC 380V |
||
|
Lamp Life |
40,000 hours |
|||
|
Lamp Color |
R G Y O B |
W |
||

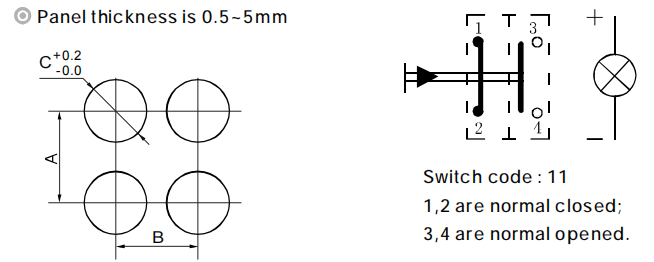

Installation Dimensions Circuit Diagram
|
Type |
A |
B |
C |
Remarks |
|
Normal,Key-lock |
≥50mm |
≥40mm |
Φ22 |
|
|
Lever |
≥55mm |
≥40mm |
||
|
Mus hroom |
≥50mm |
≥50mm |
||
|
Big Mushroom |
≥70 mm |
≥70mm |
Can be used in 25mm installation hole with a diameter changing circle.
A and B are both the
