SH-B2-10B334
YUEQING JOY IMP&EXP CO.,LTD is one of the majoy manufacturer for SH-B2-10B334,Welcome to inquire price and ask for samples.
  • Product Overview
  • Specifications
  • Swith Ratings

Mounting hole size:Φ22

Switch rating:Ui 440V,Ith 10A

Mechanical life:2 million times

Electrical life:500,000 times

Contact structure:10/01/20/02/30/40/21/12/22/33

Illuminated voltageAC/DC3V6V12V24V36V48V110V220V  AC110V220V380V

Operation type: No-self-recovery type;  ZS-self-locking type;

Color: red, green, yellow, blue, white

Cutline of Normal Type


OperatingTemperature

- 25℃~+55℃(no freezing)

Operating Hum idity

45 ~ 85%RH(no condensation)

Operating Altitude

Installation site can' t be over 2000m above see level.

Contact Material


-silver
-silver alloy
-gold-clad silver, cladding thickness is 3 μm


Contact Resistance

≤50m

Insulation Resistance

≥100M

Dielectric Strength

3000V,Alternating Current50Hz

Vibration Resistance

50Hz,Amplitude 1.0mm p-p

Shock Resistance

≥10g


Life

Mechanical


Momentary :≥1,000,000 times;
alternate,selector :≥500,000
times;key-lock,e mergency :≥200,000 times


Electrical

5万times≥

Terminal


Screwterminal, connecting ability:
Min : 1×0.5mm2 ,
Max: :2×1.5mm o2 r 1 ×2 .5mm2
(with or witho utconnecting link)


Operation


Operation strength:800gf~2200gf,according to the
quantity ofswitch units
Operation travel :About 5.5mm(For push button type)


Pollution Degree

3 degrees



Rated InsulationVoltage

Ui: 660V

ThermalCurrent

Ith: 10A

RatedVoltage

24V

48V

110V

220V

380V

500V

DirectCurrent

10A

5A

2.2A

1.1A



Alternating CurrentP.F=0.7



10A

6A

4A

2A

Lamp Ratings

Lamp Type

AC LED Lamp

Rated
Voltage

AC/DC 6V

AC/DC 12V

AC/DC 24V

AC 110V

AC 220V

AC 380V

Lamp Life

40,000 hours

Lamp Color

R   G   Y   O   B

W

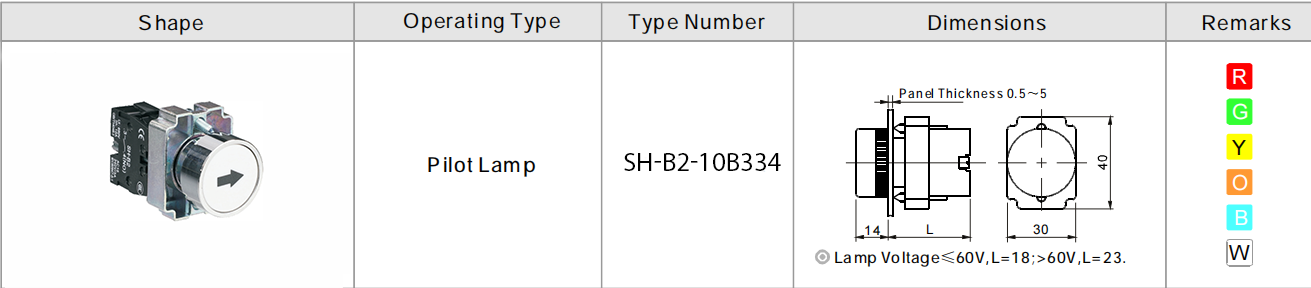

Installation Dimensions Circuit Diagram

Type

A

B

C

Remarks

Normal,Key-lock

≥50mm

≥40mm

Φ22
or
Φ25

Can be used in 25mm    installation hole with a    diameter changing circle.
A and B are both the
minimum dimensions..

Lever

≥55mm

≥40mm

Mus hroom

≥50mm

≥50mm

Big Mushroom

≥70 mm

≥70mm
