Mounting hole size:Φ22
Switch rating:Ui 440V,Ith 10A
Mechanical life:≥2 million times
Electrical life:≥500,000 times
Contact structure:：10/01/20/02/30/40/21/12/22/33
Illuminated voltage：AC/DC：3V、6V、12V、24V、36V、48V、110V、220V AC：110V、220V、380V
Operation type: No-self-recovery type; ZS-self-locking type;
Color: red, green, yellow, blue, white

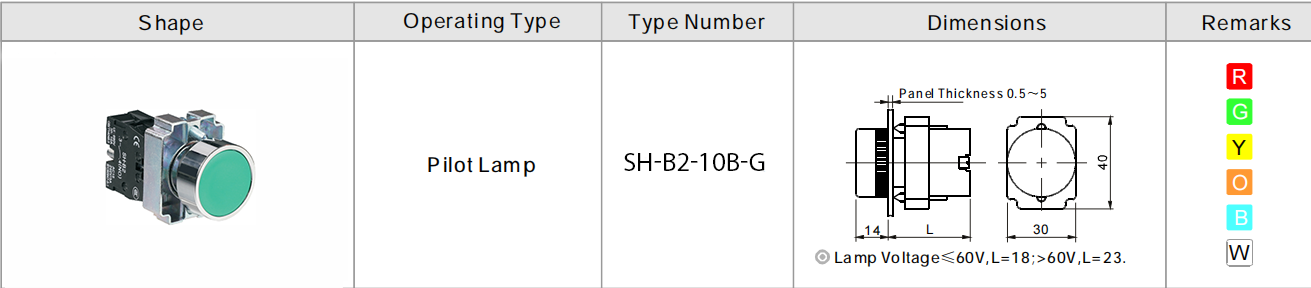

Cutline of Normal Type
|
OperatingTemperature |
- 25℃~+55℃(no freezing) |
|
|
Operating Hum idity |
45 ~ 85%RH(no condensation) |
|
|
Operating Altitude |
Installation site can＇ t be over 2000m above see level. |
|
|
Contact Material |
-silver
-silver alloy
-gold-clad silver, cladding thickness is 3 μm
|
|
|
Contact Resistance |
≤50m |
|
|
Insulation Resistance |
≥100M |
|
|
Dielectric Strength |
3000V,Alternating Current50Hz |
|
|
Vibration Resistance |
50Hz,Amplitude 1.0mm p-p |
|
|
Shock Resistance |
≥10g |
|
|
Life |
Mechanical |
Momentary :≥1,000,000 times;
alternate,selector :≥500,000
times;key-lock,e mergency :≥200,000 times
|
|
Electrical |
5万times≥ |
|
|
Terminal |
Screwterminal, connecting ability:
Min : 1×0.5mm2 ,
Max: :2×1.5mm o2 r 1 ×2 .5mm2
(with or witho utconnecting link)
|
|
|
Operation |
Operation strength:800gf~2200gf,according to the
quantity ofswitch units
Operation travel :About 5.5mm(For push button type)
|
|
|
Pollution Degree |
3 degrees |
|
