LW28-20-2-HF0-GS04-1
LW28-20-2-HF0-GS04-1
YUEQING JOY IMP&EXP CO.,LTD is one of the majoy manufacturer for LW28-20-2-HF0-GS04-1，Welcome to inquire price and ask for samples.

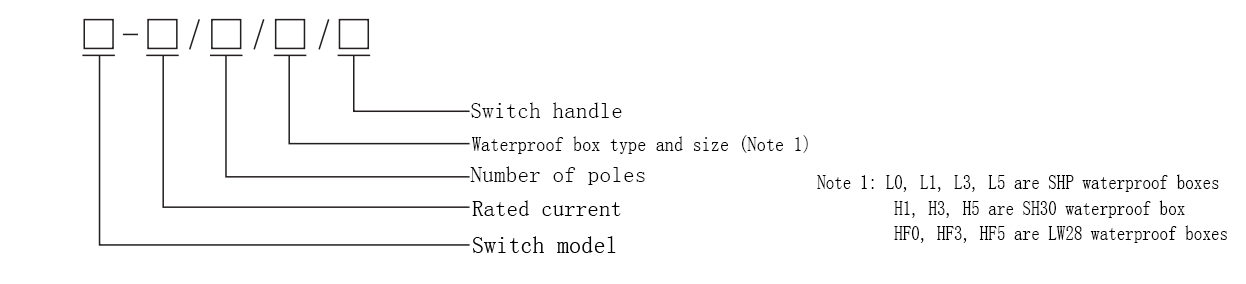

  • Model naming and its meaning
  • Specification

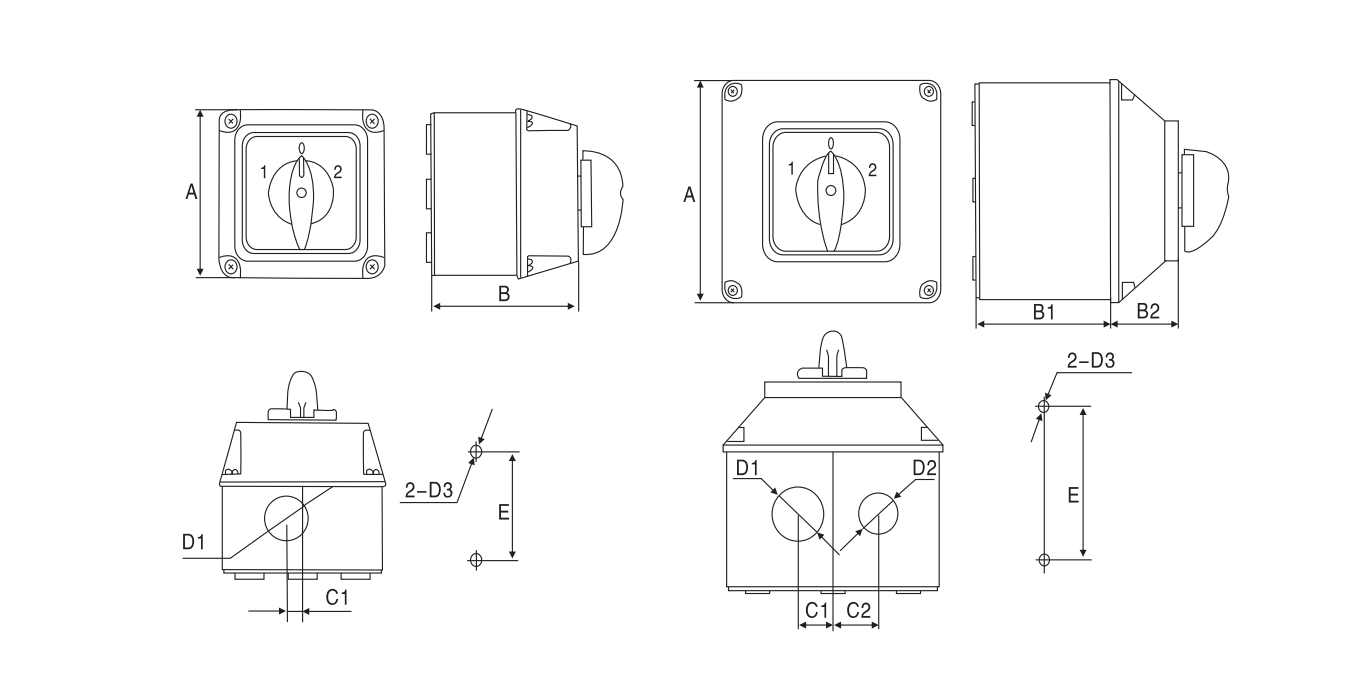

◆Overall dimensions and installation dimensions

Model specification

Dimensions

Installation size

Section number

Remark

A

B

C 1

C2

D 1

D2

D3

E

LW28-20

□68.5

70.5

6.5


Φ 18


Φ5

44

1-2


LW28-20

□68.5

122.5

6.5


Φ 18


Φ5

44

1-7


LW28-20

□1 13

107.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-6


LW28-20

□1 13

158.5

18

23.5

Φ27

Φ2 1

Φ5

78

1 - 1 1


LW28-25

□68.5

70.5

6.5


Φ 18


Φ5

44

1-2


LW28-25

□68.5

122.5

6.5


Φ 18


Φ5

44

1-7


LW28-25

□1 13

107.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-5


LW28-25

□1 13

158.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-8


LW28-32F

□68.5

70.5

6.5


Φ 18


Φ5

44

1-2


LW28-32F

□68.5

122.5

6.5


Φ 18


Φ5

44

1-2


LW28-32F

□1 13

107.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-3


LW28-32F

□1 13

158.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-5


LW28-32

□1 13

107.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-4


LW28-32

□1 13

158.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-7


LW28-63

□1 13

107.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-3


LW28-63

□1 13

158.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-6


LW28-125

□137

206.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-4


LW28-160

□137

206.5

18

23.5

Φ27

Φ2 1

Φ5

78

1-4
